Coping Blocks

Amidon Ballistic Concrete^® Coping Blocks are designed to interconnect and ease installation of any building or building design requirement.

Each block is specifically created using pre-cast molds at our manufacturing facility, or for larger jobs, onsite. Once formed, each is inspected to ensure quality by one of our engineers. When ready for installation, each block is installed and interconnected per the specifications provided by the client.

Below is an example of requirements given to us when creating a training environment for the United States Marine Corps. The resulting training environment has been in constant use since completion of construction without any failures.

USMC Training Environment

Shoot house design & block layout

3D rendering of the R132 building shoot house structure shell

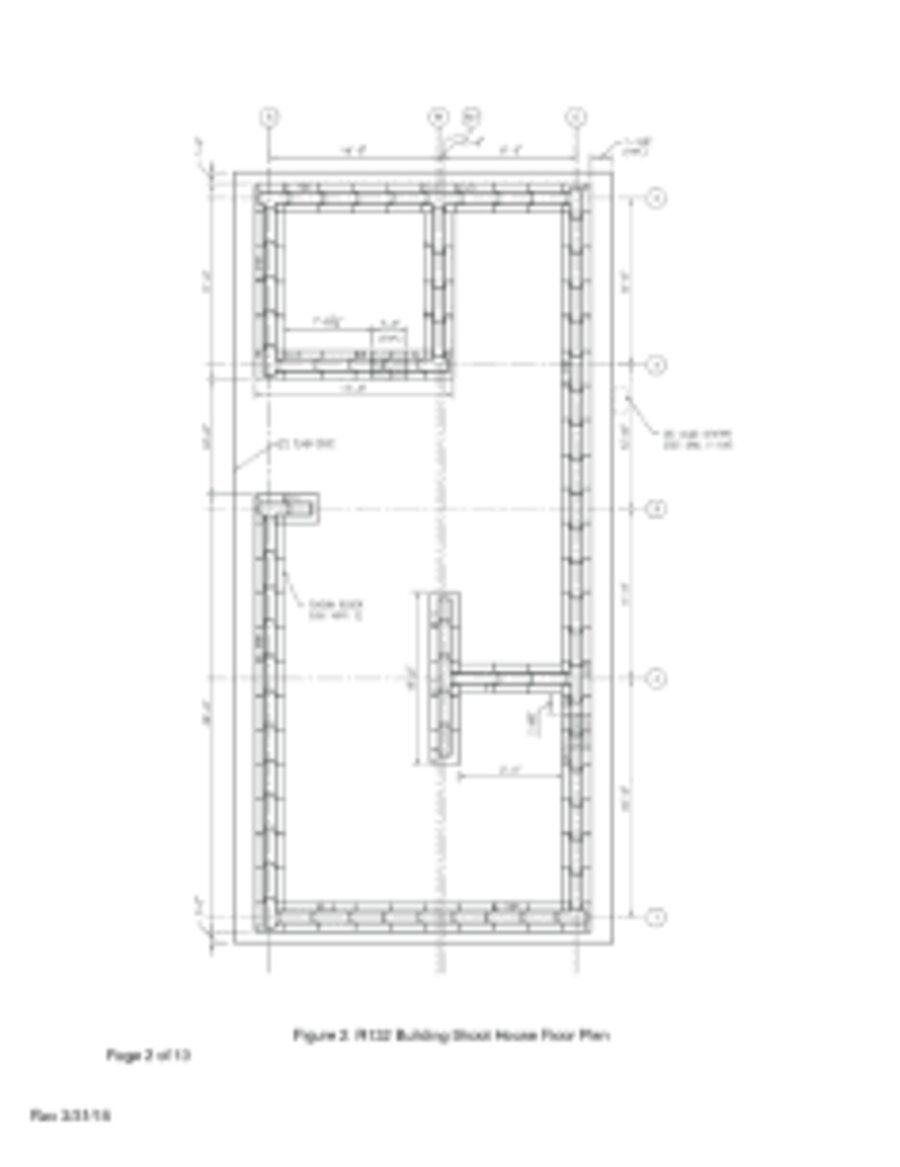

R132 building shoot house floor plan, Figure 2

R133 building shoot house 3D illustration showing coping block wall layout, Figure 2

R133 building shoot house floor plan, Figure 4

12-inch by 12-inch by 18-inch keyed brick dimensional diagram, Figure 6

Requirements

Block Part Number ID	Qty	UI	Description
—	13	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
—	13	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Right Intersecting – Male/Female
C-1	10	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
DL	—	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
DR	—	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
—	13	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
E-1	13	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
E-3	13	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
E-4	13	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
E-24	13	EA	30″D x 3′W x 10′H Shock-absorbing concrete Keyed Block, Left Corner – Male/Female
F-1	13	EA	30″D x 3′-3″W x 10′H Shock-absorbing concrete Keyed Block, Male/Male
—	13	EA	24″D x 3′W Coping Block
GLC	13	EA	24″D x 3′W Coping Block, Left Entry
GRC	—	EA	24″D x 3′W Coping Block, Right Entry
GL	—	EA	24″D x 3′W Coping Block, Left Corner
GR	—	EA	24″D x 3′W Coping Block, Right Corner
G33	—	EA	33″D x 2′ Coping Block
MB	400	EA	Keyed Brick 12″x12″x18″
N/A	400	EA	Keyed Brick 12″x12″x18″

Reproduced from the original project specification sheet. A small number of part-number and quantity fields were merged or blank in the source document and are marked with – rather than assumed.

Need a coping block spec for your own project?

Send us your building requirements and one of our engineers will put together a part list like the one above.
