Design Services: From Concept to Range Layout

Before a single ABC panel is manufactured, a facility has to be designed — and design, for a live-fire structure, means more than aesthetics. It means solving for safety, mission requirements, and site conditions simultaneously.

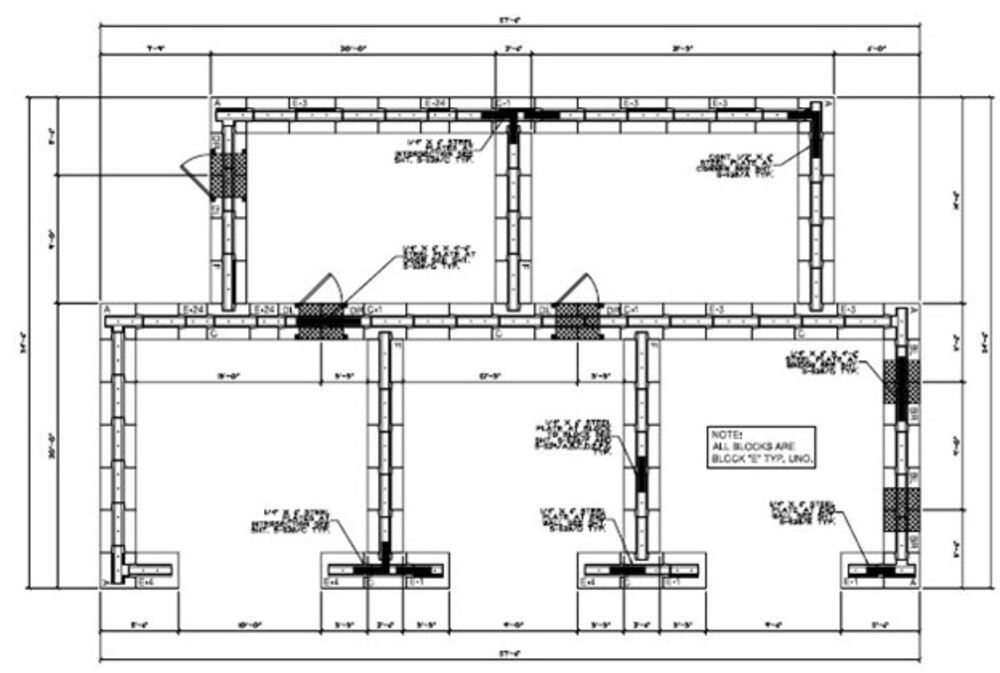

Engineered floor plan drawing showing a modular ballistic concrete range layout with dimensions and block callouts
A finished range layout translates mission requirements and site constraints into a buildable, block-by-block plan.

Starting from the mission, not the blueprint

A design process that starts with what training scenarios a facility actually needs to support, rather than a generic template, is more likely to produce a layout that holds up under real use.

Site-specific constraints

Every site has its own terrain, space limitations, and safety-distance requirements. Design services account for these directly rather than forcing a standard layout onto a site that doesn’t fit it.

Where design hands off to production

Once a layout is finalized, design work transitions into production and installation — the same underlying modular ABC system, just moving from planning into physical construction.

← Back to Design Services

Ready to move from concept to layout?

Bring us your mission requirements and site conditions, and our design team will get you to a build-ready range layout.
